Lit Baffle
Luminaire

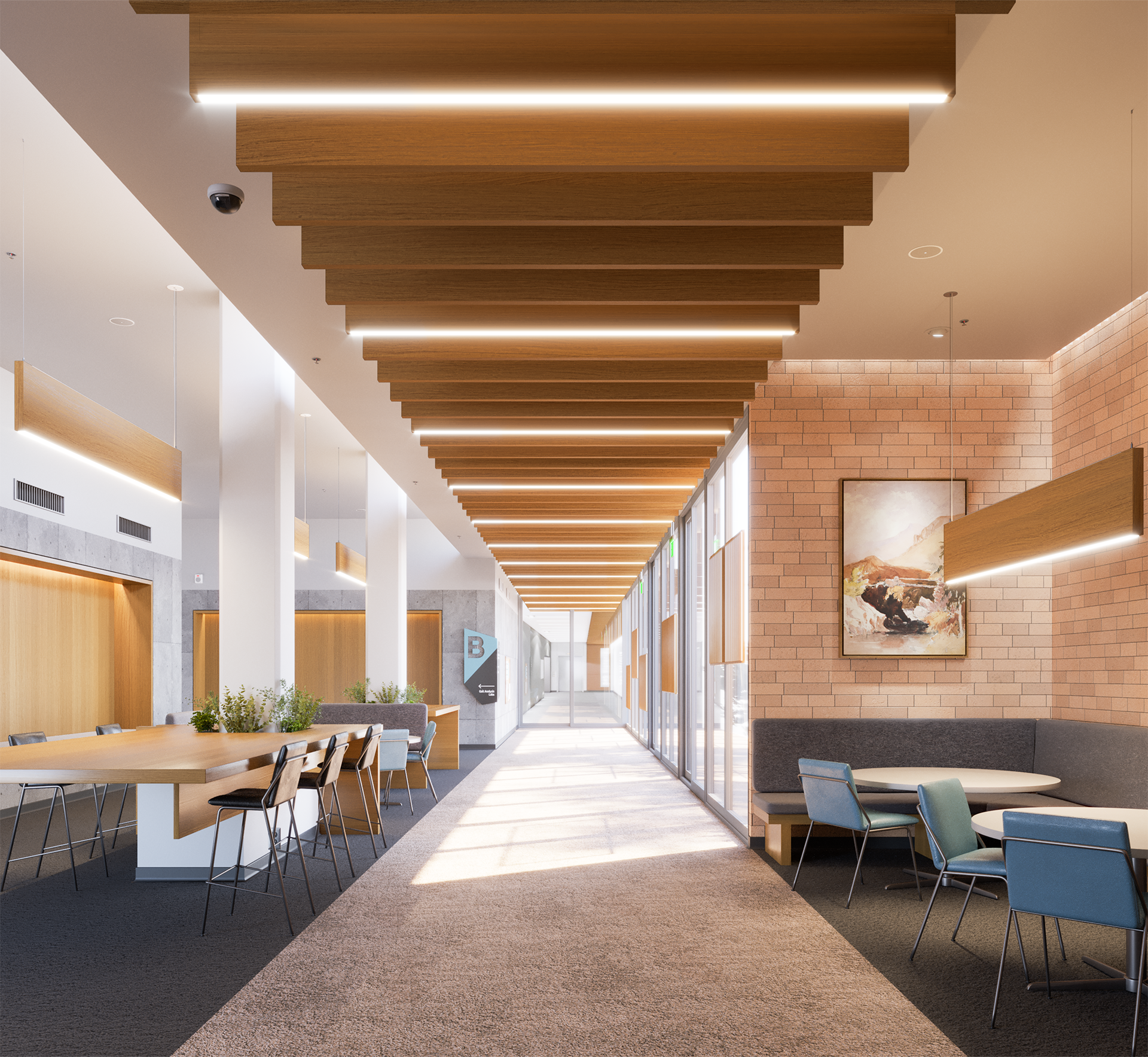

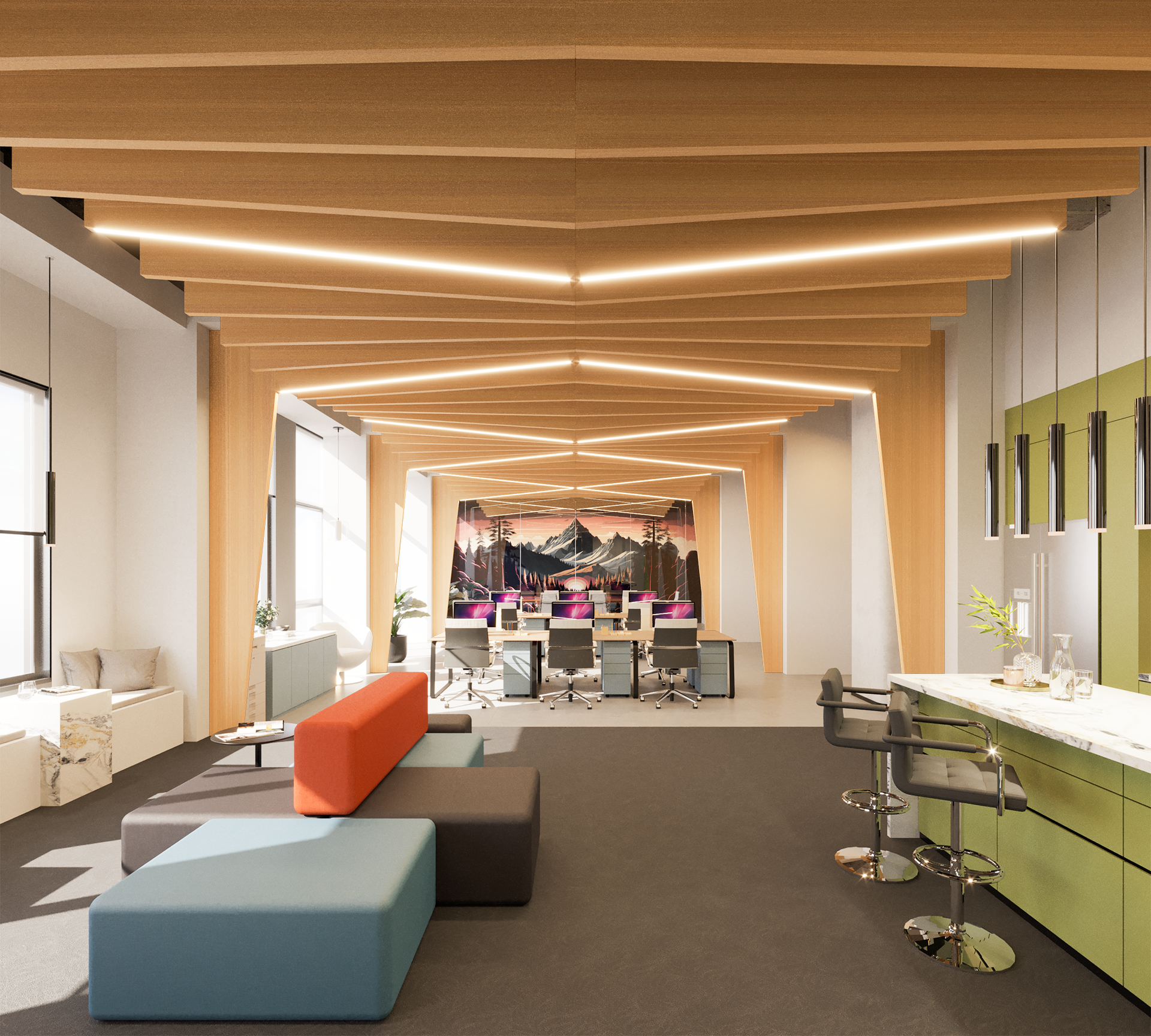

Discover Rensa Lit Baffles—the world's only real wood, acoustic luminaires. A versatile, modern profile, the Rensa Lit Baffles integrates exceptional lighting and top-performing sound absorption into one attractive solution. Designed to complement SoundPly Acoustic Baffles, Planks and Panels for a total room solution with matching real wood finishes.

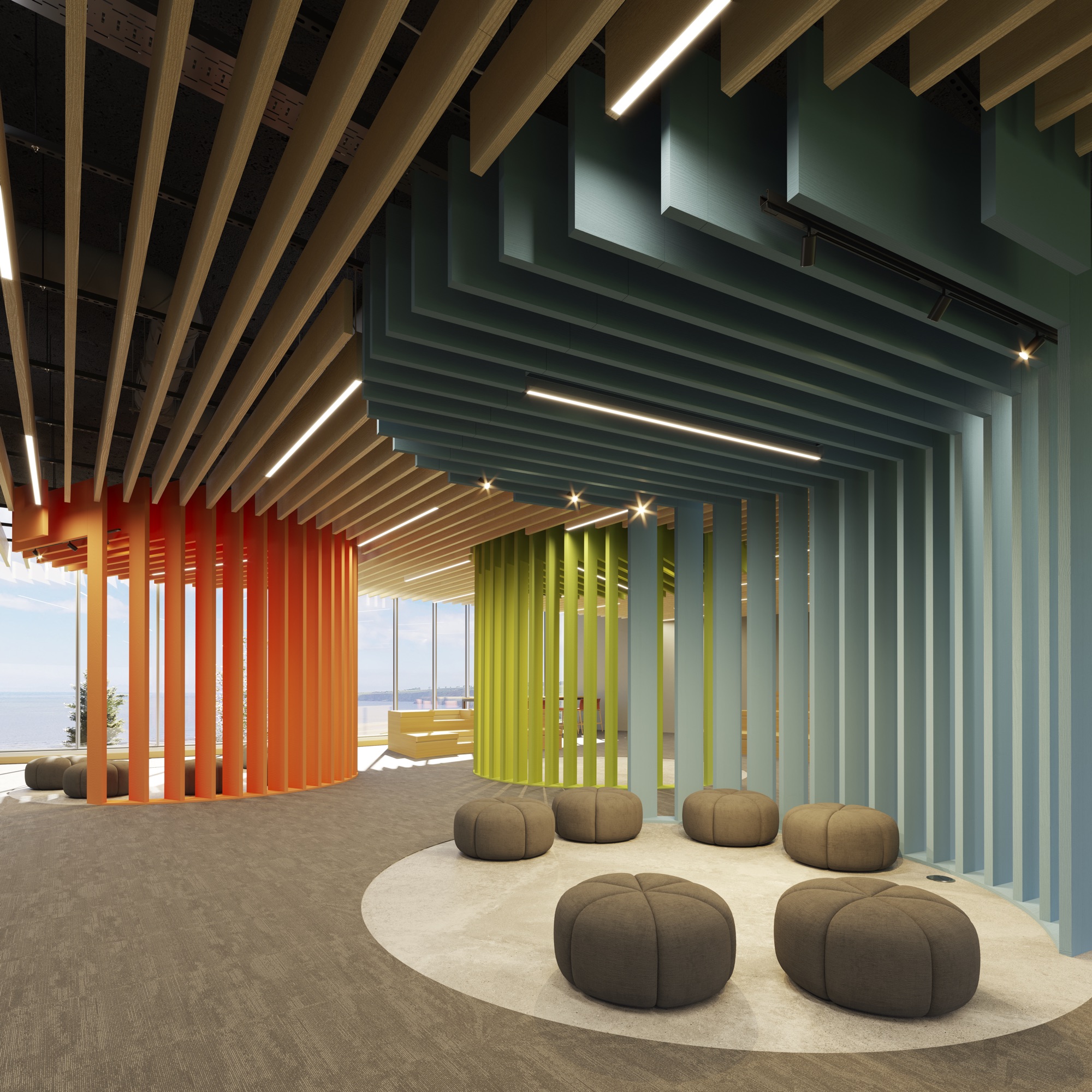

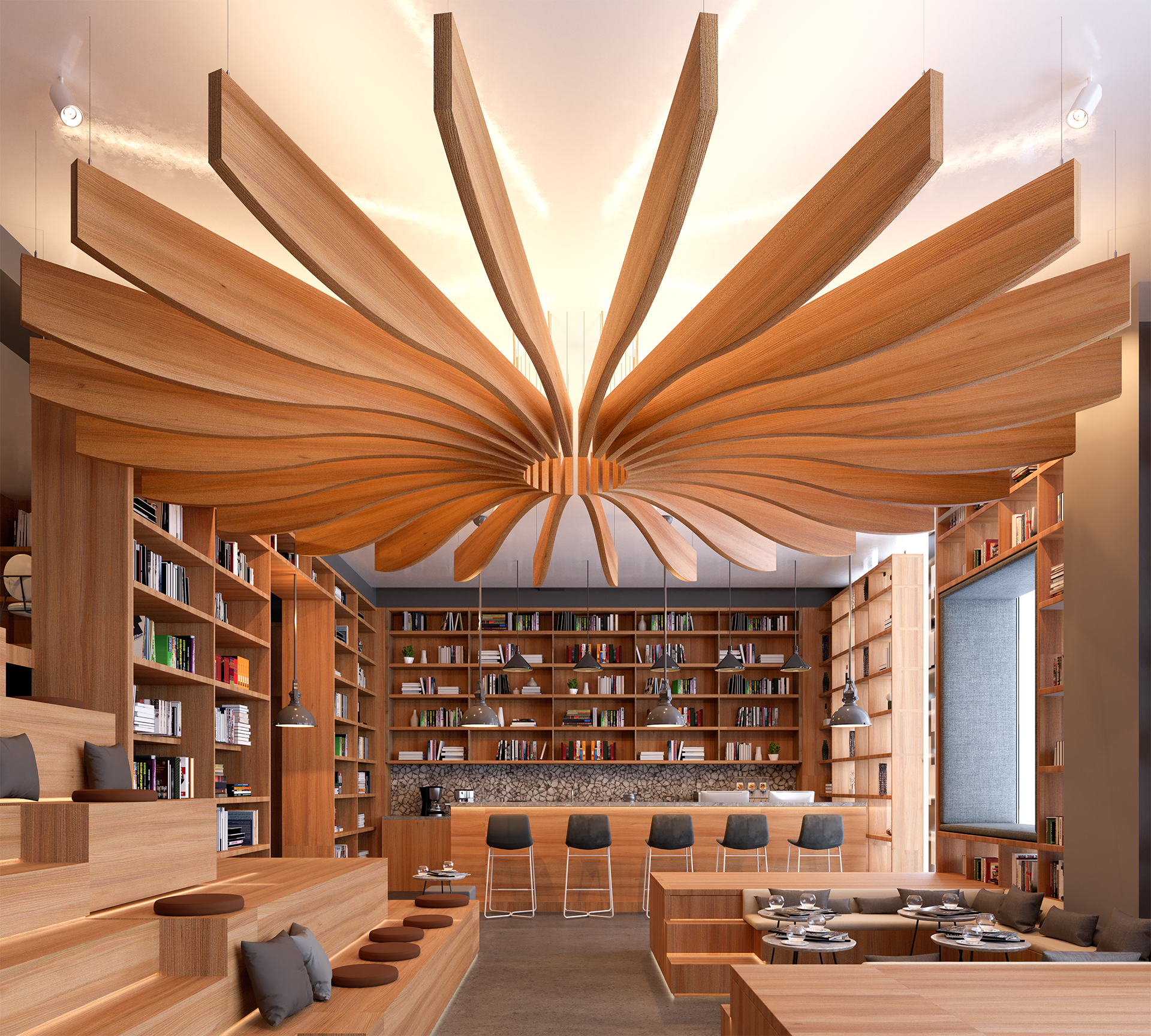

Leverage design flexibility across ceilings and walls with continuous runs and custom patterns.
Visit soundply.com for more acoustic product information
Integrates with SoundPly
Visit soundply.com →Features
Highest Quality Lighting
MicroPerfection
Custom Real Wood
Lightweight Acoustic Core
Hardware for every installation
Specifications
Acoustics
With SoundPly surface treatment:
ASTM C423, F6 Direct Mount.
- RF Core – 0.90 NRC
- LR Core – 0.80 NRC
Material
Core consists of RF fiberglass or LR mineral wool. Recycled content:
Surface consists of thermally fused layers of fiberglass reinforced polymer and/or MDF.
- 30% Post-consumer (RF)
- 21% Pre-consumer (LR)
Finish
- Real wood veneer, species as selected.
- Painted MDF finish, color as selected.
Optics
Direct: Diffuse
Indirect: Batwing
90 CRI
Electrical
Voltage: (120/277V) Universal, 1% Dimming, 0-10V
Luminaire
- Reflectors fabricated of 22 Ga. steel.
- Matte White powder coat finish.
- Extruded acrylic lens 0.05 in. thick with frosted finish.
- Up to 10’ continuous.
Mounting
Pendant, suspended by aircraft cable.
Fire Rating
Class A, ASTM E84
Environmental
For use up to 25 °C ambient.
25%-55% relative humidity.
Dry locations only.
LEED
- MR Recycled Content
- MR Material Ingredients
- EA Optimized Energy Performance
- EQ Enhanced Acoustical Performance
- EQ Interior Lighting
- EQ Daylight
- EQ Low Emitting Materials (RF core)
Maintenance
Baffle Housing – see SoundPly Maintenance Instructions
Luminaire – see Rensa Lit Baffle Maintenance Instructions
Warranty
1-Year Housing
5-Year Luminaire
UL Listing
Luminaires, UL1598
Fixture Options
Surface Treatment
- SoundPly (Micro-perforated)
- AeroPly (Not perforated)
Acoustic Core
- RF Series (0.90 NRC)
- LR Series (0.80 NRC)
Thickness
- 2"
Height
- 5.75"
- 7.75"
- 11.75"
- 23.75"
- Custom (between 6" and 24")
Length
- 48"
- 72"
- 96"
- 120"
Actual sizing shown, though dimensions may be referenced to as nominal heights.
Lighting Options
Direct Light – Engine (LM/FT)
- NONE
- 300
- 400
- 500
- 650
- 800
Indirect Light – Engine (LM/FT)
- NONE
- 375
- 500
- 625
- 800
- 950
Direct Light – Optics
- Regress Lens (Standard)
Indirect Light – Optics
- Batwing (Standard)
Color Temperature
- 3000K, 80 and 90 CRI
- 3500K, 80 and 90 CRI
- 4000K, 80 CRI only
Circuiting
- Single Circuit
- Double Circuit
Cord Type
- Standard
- Plug
Cord Length
- 24"
- 48"
- 96"

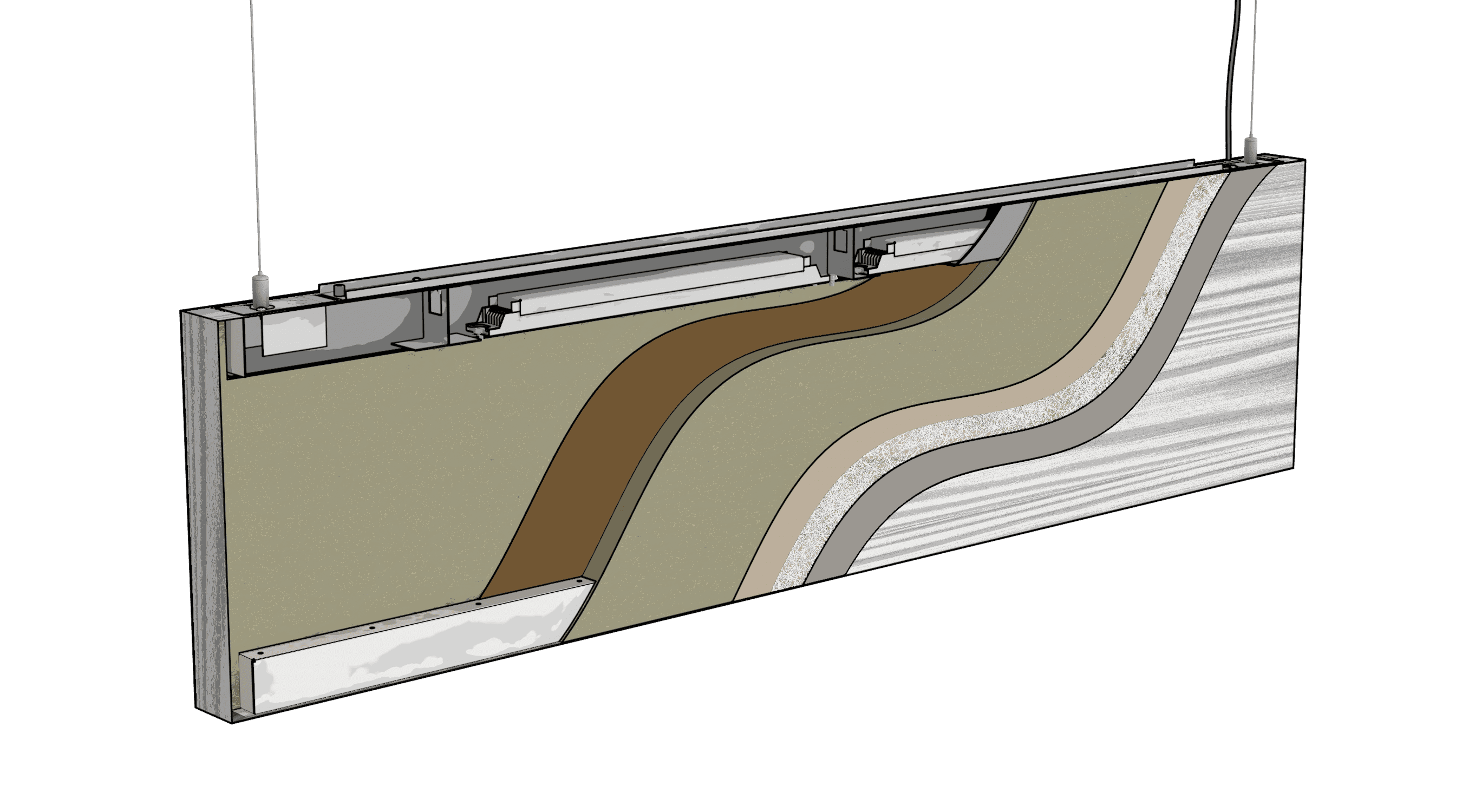

Cutaway Diagram
