Praxis

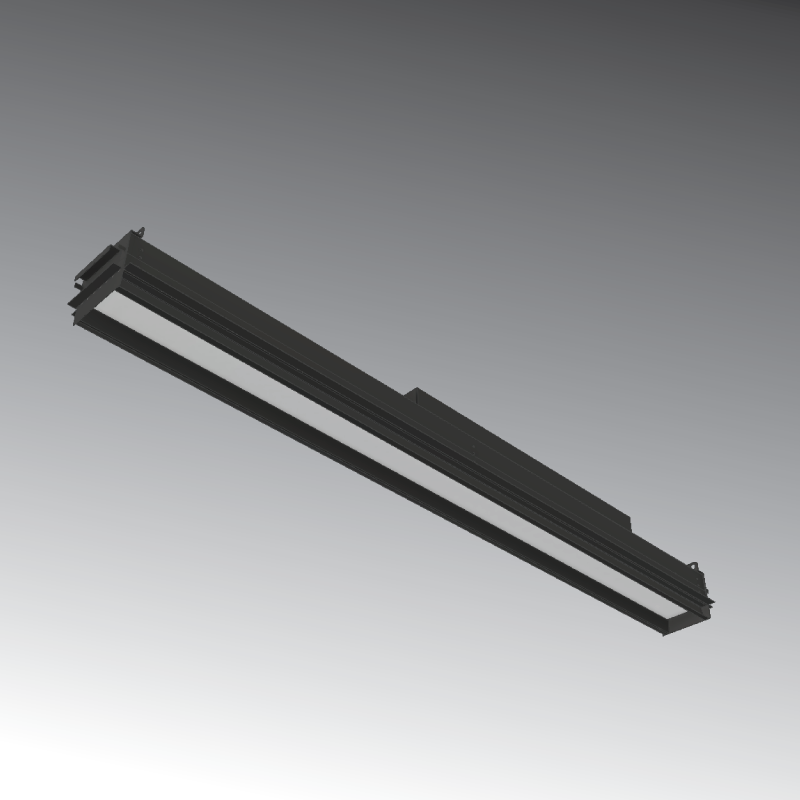

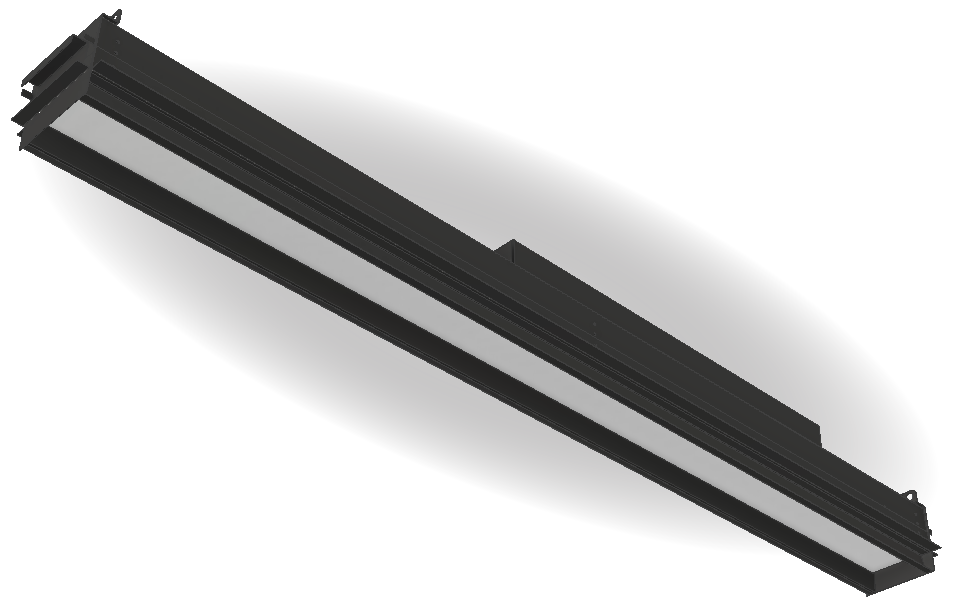

Linear Light System
Praxis is designed to seamlessly integrate with SoundPly acoustic panels & planks. Saves time, hassle and costly rework. Our team coordinates between the architect, lighting design and installer to provide a project-specific grid layout so everything fits perfectly.
Satisfy Your Needs
- ✓
Simplify sourcing and timelines with one source of supply. All components arrive at the job site together.
- ✓
Support well-being and enjoyment of the space with WELL Building compatible options.

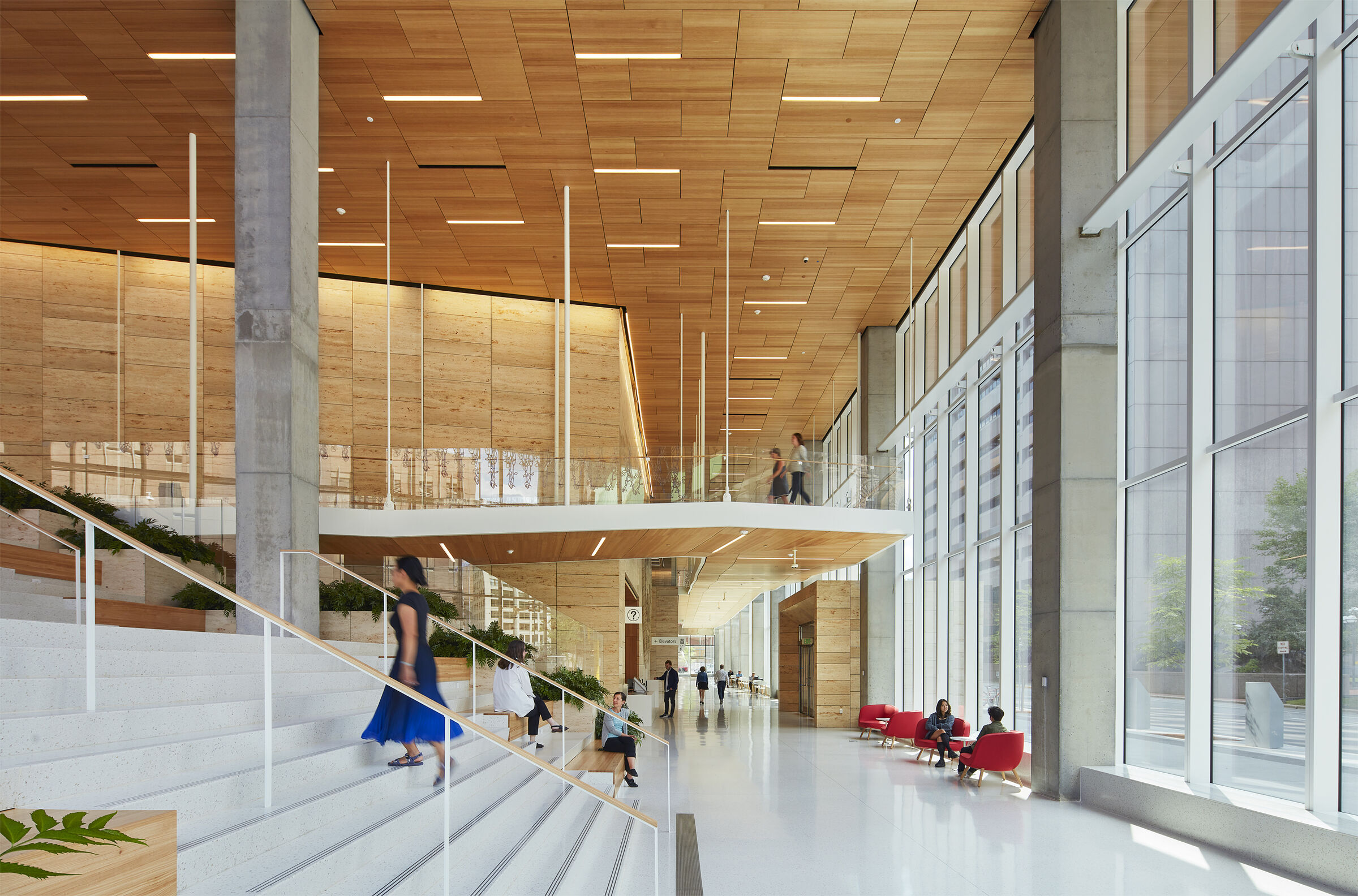

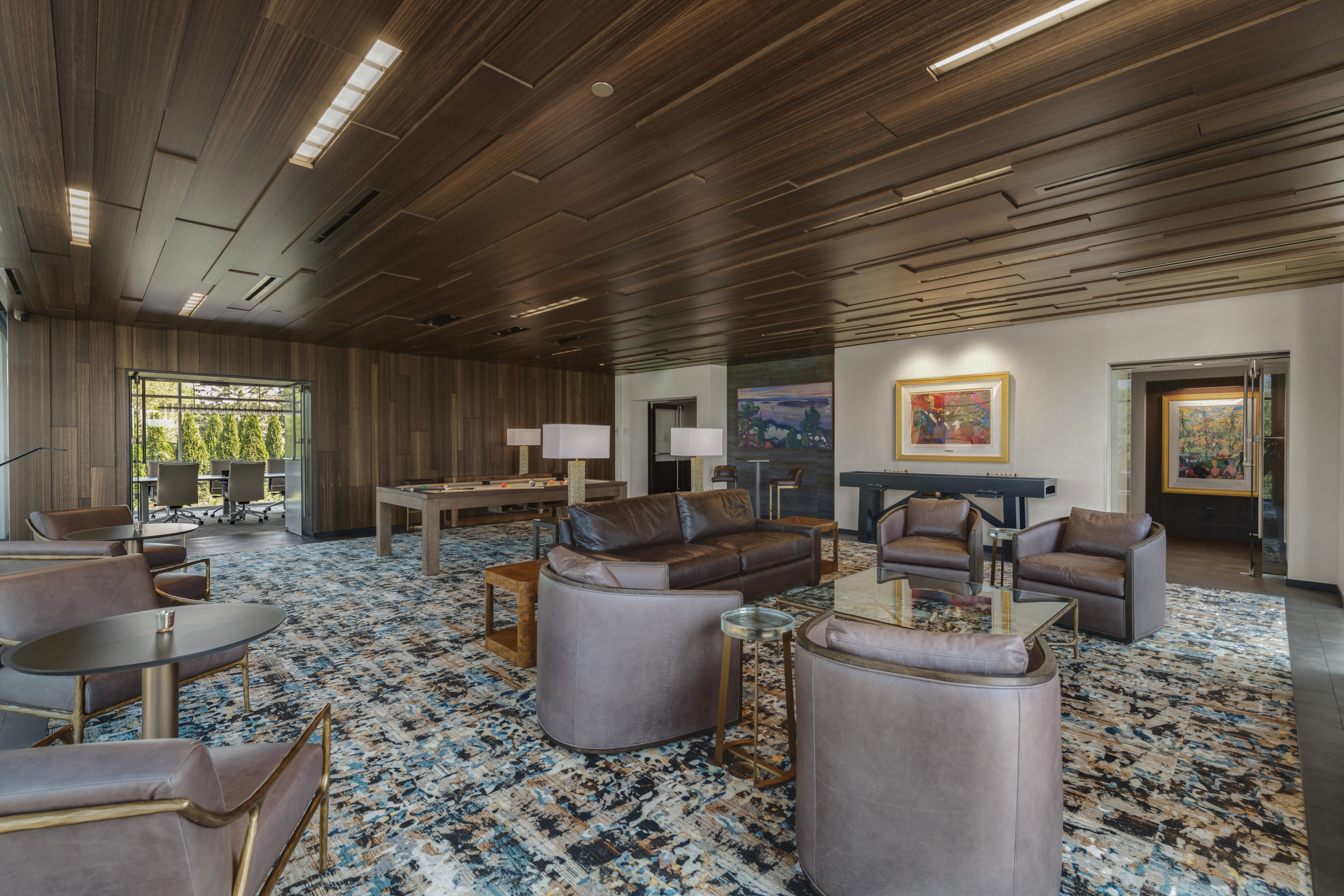

Integrates with SoundPly
Leverage design flexibility across ceilings and walls with continuous runs and custom patterns.
Visit soundply.com for more acoustic product information.
Visit soundply.com →
Specifications
Electrical
LED Light Engine designed for reliability and long-life operation. Standard 0-10V dimming to 1%. 120-277V standard.
Optical
Evenly diffuse flat acrylic lens. End-to-end illumination for even row lighting.
Mounting & Installation
Proprietary design and hardware ensure consistent reveal width perfect fit and alignment with SoundPly acoustic panels.
Construction
Pre-painted black steel utilizing screw fasteners for gear tray connection.
Controls
Individual or grouping control solutions available. Consult factory for specific requirements.
Environmental
For use up to 25 °C ambient, 25%-55% relative humidity. Dry locations only
Listings
ETL safety certified for damp locations. Standard 5 year warranty / 10 year warranty available upon request.
Warranty
Low maintenance cost with 5-year / 50,000 hour warranty. 10-year upon request.
Well Building Standard Compatible
- L04 Electric Light Glare Control
- L08 Electric Light Quality
- S04 Reverberation Time
- S05 Sound Reducing Surfaces
- X05 Enhanced Material Restrictions
- X06 Volatile Organic Compound Restrictions
LEED
- MR Recycled Content
- MR Material Ingredients
- EA Optimized Energy Performance
- EQ Enhanced Acoustical Performance
- EQ Interior Lighting
- EQ Daylight
- EQ Low Emitting Materials (RF core)
Fixture Options
Length
- 48"
Width
- 4"
- Custom (Consult Factory)
Row Option
- Standalone
- Middle of Row
- End/Start of Row
- Pattern* (Consult Factory)
* See below for examples of pattern options.
Emergency Power
- None
- 6W Standard
Panel/Plank Thickness
- 3/4"
- 1"
- 1 1/2"
- 2"
Pattern Options
Square
T
X
Custom
Lighting Options
Light Engine (LM/FT)
- 300
- 400
- 500
- 650
- 800
Dimming
- Step Dimming (Bi/Tri Level)
- 120V Line Voltage Dimmer
- Prewired for 0-10V Dimming
- Wireless Dimming
Optics
- Well Building (Standard)
- Flat Diffuser
Color Temperature
- 3000K, 80 and 90 CRI
- 3500K, 80 and 90 CRI
- 4000K, 80 and 90 CRI
- 5000K, 80 and 90 CRI
- Tunable White 2700K-6000K
- RGB+White 3000K
- RGB+White 3500K
- RGB+White 4000K
- RGB+White 5000K
